192.168.100.1 - Cable Modem Diagnostics
The DOCSIS-standard admin address for standalone cable modems (Arris SB8200, Motorola MB8600, Netgear CM1200). Check signal levels, upstream power, and connection logs here.
Summary
- DOCSIS Standard. 192.168.100.1 is defined in the DOCSIS specification as the modem's management address. This is why all major brands use the same IP - Arris, Motorola, Netgear, Hitron, Zoom.
- Diagnostics Only. Most cable modems expose a read-only status page here. You can see signal levels and event logs but not change settings - ISPs lock most configuration options.
- Not Your Router. Your router's admin panel is at a different address (192.168.1.1, 10.0.0.1, etc.). This address is specifically for the modem hardware diagnostics.
- Troubleshoot Issues. When your internet is slow or dropping, checking signal levels at 192.168.100.1 is the first step to determine if it is a modem signal problem or something on the router/Wi-Fi side.
At a glance
All IPsWhat Is 192.168.100.1?
192.168.100.1 is a special address defined by the DOCSIS (Data Over Cable Service Interface Specification) standard as the default management IP for cable modems. Unlike the router gateway addresses (like 192.168.1.1), this address belongs to the modem itself - specifically its internal management interface - and is not part of your home network's normal IP range.
When you are using a separate modem and router setup (as opposed to a combined modem-router gateway), your router connects to the modem, and 192.168.100.1 is only accessible by connecting a device directly to the modem via Ethernet, bypassing the router.

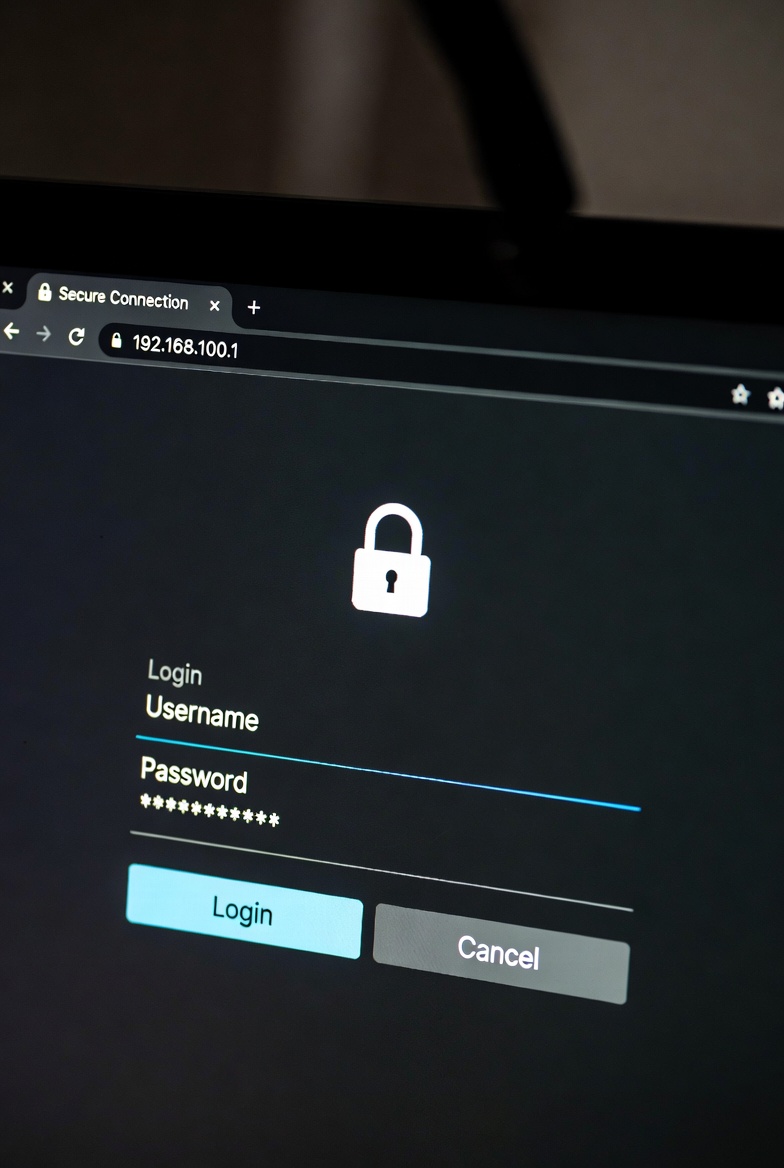

http://192.168.100.1 in a browser.How to Access 192.168.100.1
- 1Connect via Ethernet directly to modem
For cable modem diagnostics, connect your computer directly to the modem via Ethernet (not through a router).
- 2Open http://192.168.100.1
Type
http://192.168.100.1in a browser. The modem diagnostics page loads without login on most models. - 3Read signal levels and status
The page shows DOCSIS downstream/upstream channel signal levels, codeword error counts, and provisioning status. No login is needed for view-only access.
Default Credentials by Modem
| Modem Model | Username | Password | Interface Type |
|---|---|---|---|
Arris SB6183 | admin | admin | Full admin panel |
Arris SB8200 | admin | admin | Full admin panel |
Arris SB6141 | admin | admin | Full admin panel |
Motorola MB8600 | admin | motorola | Full admin panel |
Motorola MB7621 | admin | motorola | Full admin panel |
Netgear CM1200 | admin | password | Full admin panel |
Netgear CM1000 | admin | password | Full admin panel |
Hitron CDA3 / EN2251 | admin | password | ISP may lock some sections |
Huawei HG8245H | admin | admin | Full admin panel |
ISP-provided modems | admin | device-specific | Often read-only for consumers |
Reading Cable Modem Signal Levels
The most useful thing to check at 192.168.100.1 is the downstream and upstream signal quality. Poor signal causes slow speeds, packet loss, and random disconnections. Here is how to interpret what you see:
Downstream Signal Levels (what to look for)
| Metric | Good Range | Marginal | Problem |
|---|---|---|---|
Receive Power (dBmV) | -7 to +7 dBmV | -10 to -8 or +8 to +10 | Below -10 or above +10 |
SNR / MER (dB) - QAM256 | Above 33 dB | 30-33 dB | Below 30 dB |
SNR / MER (dB) - QAM64 | Above 30 dB | 27-30 dB | Below 27 dB |
Uncorrectable Errors | 0 or near 0 | Slowly rising | Rapidly increasing |
Upstream Signal Levels
| Metric | Good Range | Marginal | Problem |
|---|---|---|---|
Transmit Power (dBmV) | 38-48 dBmV | 48-50 or 36-38 | Above 50 or below 36 |
T3 Timeouts | 0 | 1-5 total | Increasing rapidly |
T4 Timeouts | 0 | - | Any occurrence |
Troubleshooting 192.168.100.1 Access
- 1Connect directly to modem, not router
This is the #1 reason 192.168.100.1 doesn't work. If you are connected to your router (via Wi-Fi or LAN port), the router does not forward traffic to 192.168.100.1. You must plug directly into the modem with Ethernet.
- 2Wait for DHCP assignment
After plugging into the modem, your computer needs to receive an IP in the 192.168.100.x range. This can take 30-60 seconds. Check your IP address (ipconfig on Windows) before trying the browser - if you still have your old 192.168.1.x address, wait a bit longer or release/renew your IP (
ipconfig /releasethenipconfig /renew). - 3Power cycle the modem
Unplug the modem's power cable, wait 60 seconds, plug back in. Cable modems take 2-5 minutes to re-acquire a signal from the ISP. After full initialization, try 192.168.100.1 again.
Frequently Asked Questions
Can I use 192.168.100.1 to change my ISP username/password?
No. The ISP's authentication credentials (for PPPoE or DOCSIS) are provisioned by the ISP remotely and cannot be changed at 192.168.100.1. This interface is for diagnostics - viewing signal levels, event logs, and device info. To change ISP-level settings, you must contact your ISP directly.
My cable modem shows lots of T3 errors in the log - what does that mean?
T3 timeout errors mean the modem tried to range (transmit upstream) and did not get a response from your ISP's CMTS (cable modem termination system) in time. Causes include high upstream noise, weak signal, a bad splitter, damaged coax cable, or ISP infrastructure issues. If you see T3 errors accumulating, check all coax connections in your home for corrosion or damage, remove unnecessary splitters, and if the problem persists, call your ISP for a line check.
Should I buy my own modem or rent from the ISP?
Buying your own is almost always cheaper in the long run. Most ISPs charge $10-15 per month to rent a modem. A quality DOCSIS 3.1 modem like the Arris SB8200 or Motorola MB8600 costs around $80-100 and pays for itself in under a year. You also get full access to the admin interface at 192.168.100.1 without ISP restrictions, and you own the hardware so a modem swap doesn't reset your configuration.
Disclaimer
For educational purposes only. Signal level ranges are general guidelines - always consult your ISP's specifications for your specific service tier. 19216811.org is not affiliated with Arris, Motorola, Netgear, Hitron, or any ISP.
